Screw Type Quick Release Coupling

Home / Our Product Range / Screw Type Quick Release Coupling

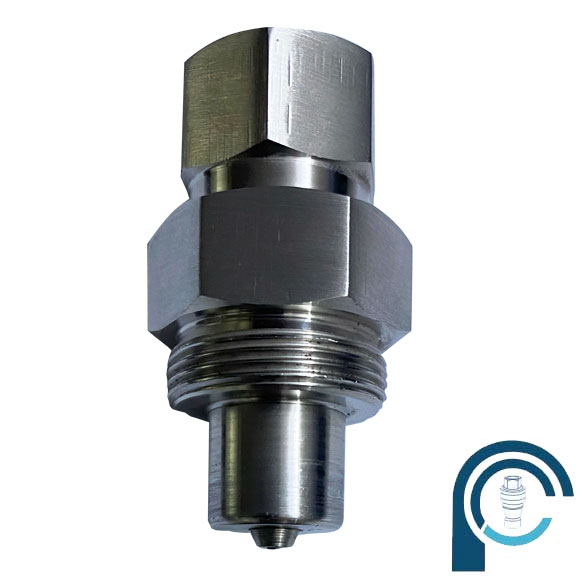

Screw Type Quick Release Couplings (QRC)

Buy Screw Type Coupling, Screw Type Quick Release Couplings, Quick Change Coupling at affordable Prices from Perfect Engineers - Leading Manufacturer, Supplier, and Exporter in India.

Screw Type Quick Release Couplings are the simplest form of couplings used to connect and disconnect hydraulic lines under pressure. Screwed To Connect QRC is recommended by many manufacturers due to their capacity to make the machine operational without losing unnecessary fluid. Screw Couplings are fitted without the use of any special device or tool.

Screw Type coupling is designed to be used in high pressure & impulse applications that need an easy and safe connection. This Coupling is said to outperform the regular couplers in the market. In the presence of stuck pressure, a normal coupler is difficult to connect or disconnect. This leads to an undesired increase in downtime. While the Screw Couplings thread together easily even under pressure by securely releasing oil and transferring it to the chamber. It can connect up to the pressure of 5000 psi on both sides.

Because of the screw quick release couplings' construction, the two valves are openly stacked in their position. This renders them insensitive to hydraulic impact. Screw to Connect QRC is redefining industry standards for dependability, safety, and ease of connection. It can withstand the most demanding applications & transform an unmanageable event into a tolerable one.

At Perfect Engineers, we put Screw Type QRC through many testing to ensure that it holds the best attributes. We are the top exporter and manufacturer of Screw Type Quick Release Coupling in Mumbai, India. Order Couplings according to your project requirements by calling us at +91-8591096714 or fill out the Enquiry Form. To get additional information on Screw Type Quick Release Coupling or any of our high-quality products, contact Perfect Engineers and receive info and quotations within hours.


Screw Type Quick Release Coupling Specification

Company Perfect Engineers
Valve Size 1/8" TO 4"
Thread NPT, BSPP, BSPT
Connection FEMALE TO FEMALE, FEMALE TO MALE, MALE TO MALE
Pressure Rating 10,000 PSI
Media  HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER, COLD WATER, SEA WATER, CHEMICAL, FUEL, VACUUMS
Media Temperature (-40* C TO 300*C) RANGE AS PER PRESSURE
Body Type BAR STOCK
Seal NITRILE, VITON, EPDM
Material SS 316, SS 304, SS 316 TI, COPPER, BRASS, DUPLEX, CS, INCONEL, SUPER DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L, TITANIUM & ALL OTHER ALLOYS


Screw Type Coupling Sizes

Pressure QRC Size
10000 psi 1/8" NPT F
10000 psi 1/4" NPT F
10000 psi 3/8" NPT F
10000 psi 1/2"NPT F
10000 psi 3/4" NPT F
10000 psi 1" NPT F

Screw Type Quick Release Coupling Types

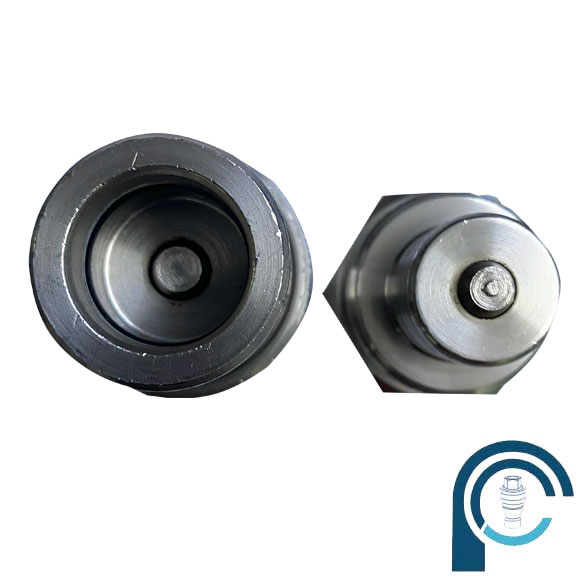

Screw Connect Coupling
Screw connect couplings are game changers for dealing with high pressure pulsing applications, eliminating brinelling, and connecting/disconnecting with residual pressure in systems.

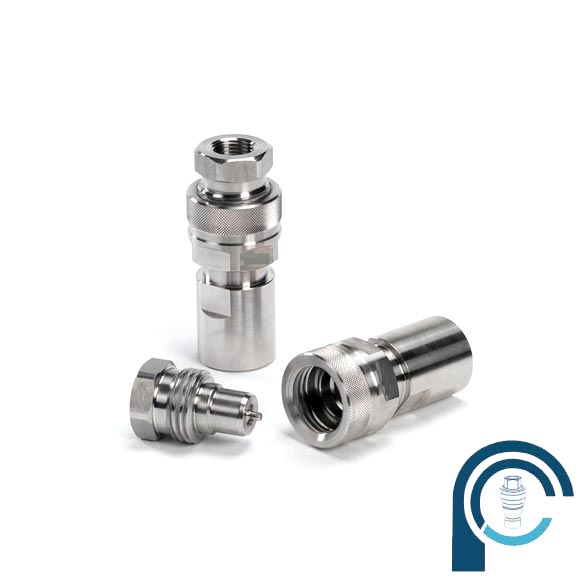

Screw Type Coupling for High Pressures<
Screw-type coupling for high pressures are prearranged for operation on construction machines under extreme conditions. By merely screwing the socket and plug together the couplings are coupled till the stop is reached.



Features of Screw Type Quick Release Coupling

  • Robust construction: Screw quick couplings are designed to resist bending effects and eliminate premature wear.
  • Viton seals: Screw type quick connect couplings can be made from AISI 316 stainless steel and have viton seals.
  • Screw connection mechanism: The screw connection mechanism avoids the use of locking balls and eliminates the risk of Brinelling.
  • Connection under residual pressure: Specific couplings can connect under residual pressure by having a flat face valve or poppet valve.
  • Easy-grip texturing: All feature easy-grip texturing for ease of use.
  • High strength: High-pressure hydraulic hoses joined by quick couplings can withstand high pressure ranging from 0-2500 bars or higher.


Application Of Screw Type Quick Release Coupling

Screw Type Quick release couplings are used in many different types of distribution systems, including water, steam, vacuum, air, and oil. When such systems demand frequent connection and disengagement, the usage of such connectors is vital for any fluid or system that travels through a line.


Why Choose Perfect Engineers?

For almost three decades, Perfect Engineers has been manufacturing and supplying a wide range of Screw Type Quick Release Coupling and other products. These robustly designed and solidly built couplings are produced with cutting-edge materials and precision technology. We stand to fulfill global quality standards at our clients' end. Furthermore, our products are tested on a variety of quality characteristics. The entire collection is available in a variety of modified sizes and dimensions to satisfy the diverse requirements of our clients, and it is specifically designed to meet the need for a simple, positive coupler. Choose Perfect Engineers and fulfill your project needs with precision. Buy Yours Today!
