Camlock Couplings
Buy Camlock Hose Couplings, Camlock Coupling Female, Camlock Coupling Type C at Reasonable Prices from Perfect Engineers - Leading Manufacturer, Supplier, and Exporter in India.
Camlock Couplings are used to establish a secure connection and are made up of two components. Male Camlock Fitting's design allows the cams to lock into place. Female Camlock Fitting contains two cams as part of its assembly. Cam and groove fittings join easily and rapidly by inserting the grooved coupling into the cam coupling and closing the cam arms. Camlock fittings contain a safety pin that keeps the arms from accidentally disconnecting while in operation.
Perfect Engineers, a leading Camlock coupling manufacturers in India offer these couplings in a variety of styles, all featuring a stainless-steel cam pin for long wear and easy replacement. Camlock Connectors have large diameter cam ears for long-lasting performance. Brass Camlock Coupling Type C connects pipes and hoses without the use of a hand tool. As a result, Stainless Steel Camlock Coupling Type C simplifies the process of constructing threaded and aged connections. Brass Camlock Coupling Type D is available in sizes ranging from ½ inch to 6 inches and doesn't require pipe tightening abilities, wrench, or tool. The Stainless Steel Camlock Coupling Type D can be rapidly linked to a faucet, valve, or tank.
Camlock Couplings are used to establish a secure connection and are made up of two components. Male Camlock Fitting's design allows the cams to lock into place. Female Camlock Fitting contains two cams as part of its assembly. Cam and groove fittings join easily and rapidly by inserting the grooved coupling into the cam coupling and closing the cam arms. Camlock fittings contain a safety pin that keeps the arms from accidentally disconnecting while in operation.
Perfect Engineers, a leading Camlock coupling manufacturers in India offer these couplings in a variety of styles, all featuring a stainless-steel cam pin for long wear and easy replacement. Camlock Connectors have large diameter cam ears for long-lasting performance. Brass Camlock Coupling Type C connects pipes and hoses without the use of a hand tool. As a result, Stainless Steel Camlock Coupling Type C simplifies the process of constructing threaded and aged connections. Brass Camlock Coupling Type D is available in sizes ranging from ½ inch to 6 inches and doesn't require pipe tightening abilities, wrench, or tool. The Stainless Steel Camlock Coupling Type D can be rapidly linked to a faucet, valve, or tank.
Camlock couplings are ideal for irrigation, general water pumping, and industrial washdown. At Perfect Engineers, we put Camlock through many testing to ensure that it retains the best attributes. Camlock Quick Couplings are commonly used in tank farms, tank trailers, tank trucks, refineries, the petroleum industry, wineries, and liquid handling. We are the top exporter and manufacturer of Camlock Couplings in Mumbai, India. Order Couplings according to your project requirements by calling us at +91-8591096714 or fill out the Enquiry Form. To get additional information on Camlock Coupling any of our high-quality products, contact Perfect Engineers and receive info and quotations within hours.
WhatsAppCamlock Coupling Specification
| Company | Perfect Engineers |
| Size | 1/8" TO 4" |
| Cam Lock Coupling Thread | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| Connection | Female To Female, Female to Male, Male to Male, Male to Hose Barbed |
| Cam Lock Coupling Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI |
| Media | HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER, COLD WATER, SEA WATER, CHEMICAL, FUEL, VACUUMS |
| Media Temperature | (-40* C TO 300*C) RANGE AS PER PRESSURE |
| Cam Lock Coupling Body Type | BAR STOCK |
| Seal | NITRILE, VITON, EPDM |
| Cam Lock Coupling Material | SS 316, SS 304, SS 316 TI, COPPER, BRASS, DUPLEX, CS, INCONEL, SUPER DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L, TITANIUM & ALL OTHER ALLOYS |
Camlock Coupling Sizes
| Cam Lock Coupling Size | DN | D1 | H1 | D | H |
| 1/2" | DN15 | 17.00 | 27.05 | 24.00 | 51.05 |
| 3/4" | DN20 | 24.01 | 28.05 | 32.01 | 54.05 |
| 1" | DN25 | 27.07 | 33.00 | 36.07 | 62.00 |
| 1-1/4" | DN32 | 35.05 | 39.00 | 45.05 | 70.05 |
| 1-1/2" | DN40 | 42.04 | 40.00 | 53.04 | 73.00 |
| 2" | DN50 | 51.00 | 45.00 | 63.00 | 82.05 |
| 2-1/2" | DN65 | 62.08 | 47.05 | 75.08 | 89.00 |
| 3" | DN80 | 77.05 | 51.00 | 91.05 | 96.05 |
| 4" | DN100 | 104.04 | 52.05 | 119.05 | 105.00 |
Camlock Coupling Types

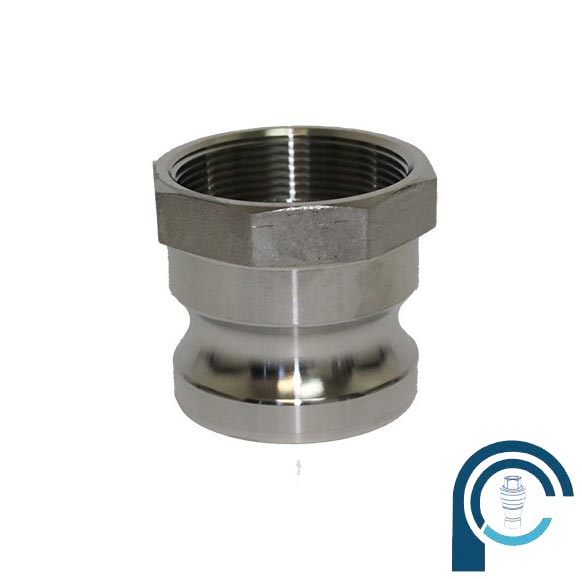

Type A

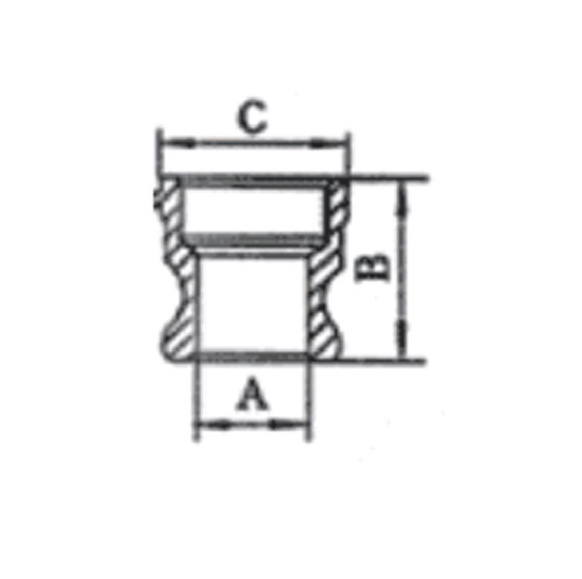

Camlock Coupling Type-A allows pipe and hose connections to be made without the use of hand tools, avoiding the complexity associated with threaded connections or an old connection. Almost instantly, connections can be established to an outlet, a faucet, a valve, a tank, or hose couplings.
Camlock Coupling Type-A allows pipe and hose connections to be made without the use of hand tools, avoiding the complexity associated with threaded connections or an old connection. Almost instantly, connections can be established to an outlet, a faucet, a valve, a tank, or hose couplings.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 21 | 21 | 24 | 28.5 | 36 | 45 | 56.5 | 73 | 98 | 122 | 148 |
| B | 38 | 38 | 48 | 56 | 60 | 46 | 87 | 73 | 78 | 95 | 86 |
| C | 32 | 32 | 40 | 48 | 56 | 67 | 83 | 96 | 127 | 154 | 190 |

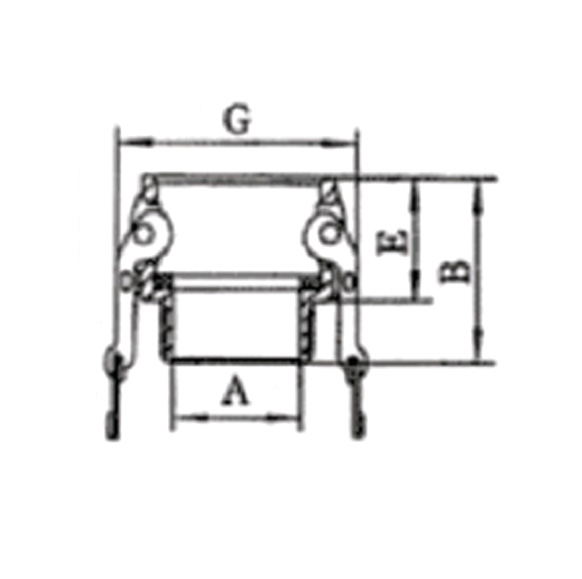

Type B

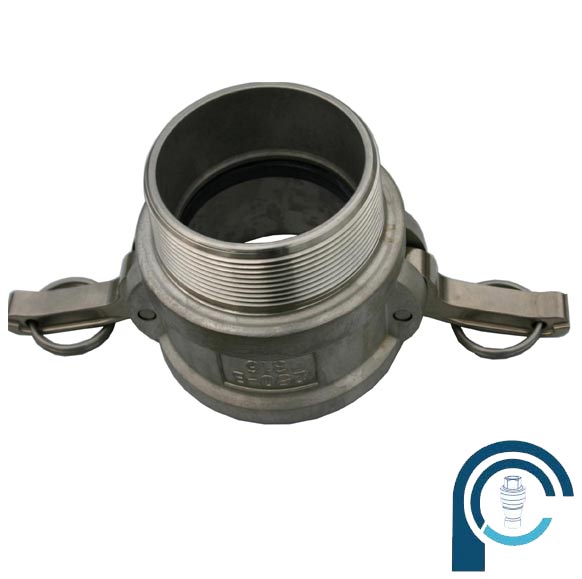

Camlock Coupling Type-B allows pipe and hose connections to be produced without the use of hand tools, avoiding the difficulty in creating threaded or anged connections. Almost instantly, connections can be established to an outlet, a faucet, a valve, a tank, or hose couplings. No pipe-tightening skills, wrenches, or tools are needed. To connect, simply push the handles down to the coupler's sides.
Camlock Coupling Type-B allows pipe and hose connections to be produced without the use of hand tools, avoiding the difficulty in creating threaded or anged connections. Almost instantly, connections can be established to an outlet, a faucet, a valve, a tank, or hose couplings. No pipe-tightening skills, wrenches, or tools are needed. To connect, simply push the handles down to the coupler's sides.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 14 | 14 | 24 | 28 | 35 | 51 | 58 | 72 | 98 | 122 | 145 |
| B | 52 | 52 | 64 | 72 | 73 | 80 | 90 | 94 | 101 | 102 | 118 |
| E | 32 | 32 | 40 | 48 | 49 | 54 | 59 | 60 | 62 | 32 | 72 |
| G | 53 | 53 | 60 | 78 | 85 | 96 | 110 | 127 | 156 | 185 | 220 |
Type C

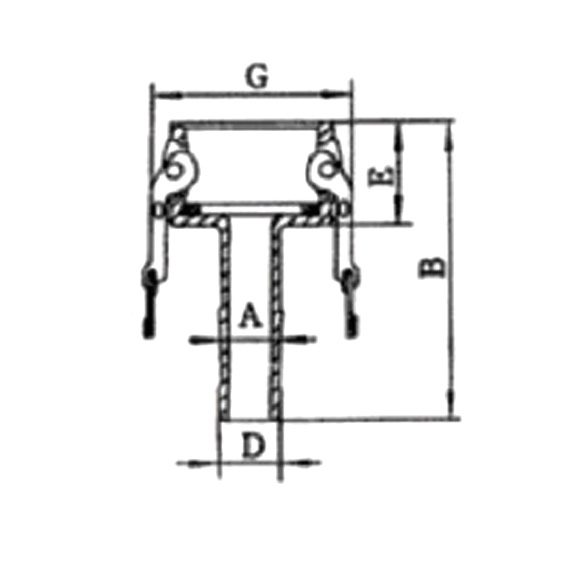

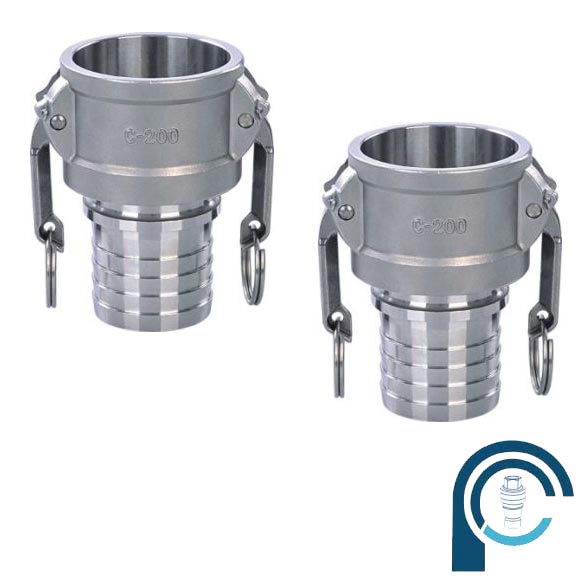

Stainless steel cam and groove female coupler with hose shank. Stainless Steel Camlock Adapter Type C couplers are typically used with Type E adapters, although they can also be used with Type A, F adapters, and DP (Dust Plug) of the same size.
Stainless steel cam and groove female coupler with hose shank. Stainless Steel Camlock Adapter Type C couplers are typically used with Type E adapters, although they can also be used with Type A, F adapters, and DP (Dust Plug) of the same size.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 16 | 19 | 26 | 30 | 39 | 50 | 58 | 72 | 98 | 122 | 145 |
| B | 52 | 52 | 62 | 68 | 71 | 78 | 85 | 91 | 96 | 102 | 118 |
| D | 32 | 32 | 40 | 48 | 56 | 67 | 83 | 96 | 127 | 154 | 190 |
| E | 32 | 32 | 40 | 48 | 49 | 54 | 59 | 60 | 62 | 62 | 72 |
| G | 53 | 53 | 60 | 78 | 85 | 96 | 110 | 127 | 156 | 185 | 220 |

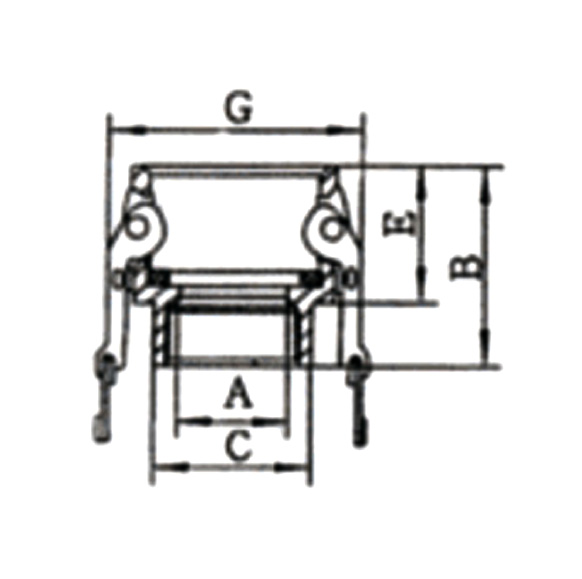

Type D

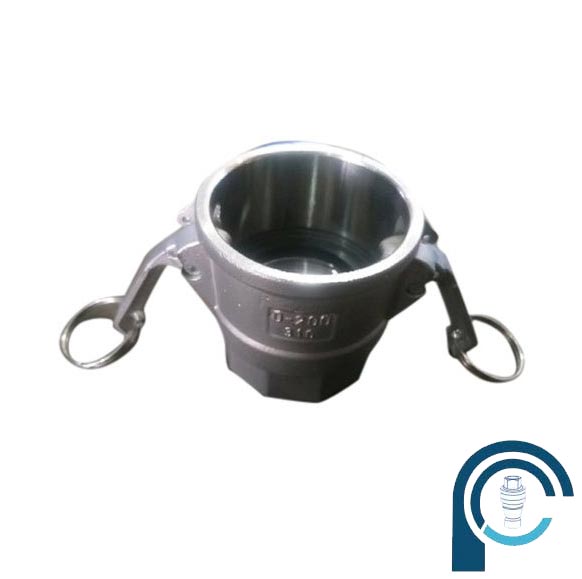

Camlock Couplings Type-D allow pipe and hose connections to be made without the use of hand tools, which eliminates the complexity of creating threaded or aged connections. Almost instantly, connections can be established to an outlet, a faucet, a valve, a tank, or hose couplings. No pipe-tightening skills, wrenches, or tools are needed. To connect, simply push the handles down to the coupler's sides.
Camlock Couplings Type-D allow pipe and hose connections to be made without the use of hand tools, which eliminates the complexity of creating threaded or aged connections. Almost instantly, connections can be established to an outlet, a faucet, a valve, a tank, or hose couplings. No pipe-tightening skills, wrenches, or tools are needed. To connect, simply push the handles down to the coupler's sides.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 16 | 19 | 26 | 30 | 39 | 50 | 58 | 72 | 98 | 122 | 145 |
| B | 52 | 52 | 62 | 68 | 71 | 78 | 85 | 91 | 96 | 102 | 118 |
| C | 32 | 32 | 40 | 48 | 56 | 67 | 83 | 96 | 127 | 154 | 190 |
| E | 32 | 32 | 40 | 48 | 49 | 54 | 69 | 60 | 62 | 62 | 72 |
| G | 53 | 53 | 60 | 78 | 85 | 96 | 110 | 127 | 156 | 185 | 220 |
Type E

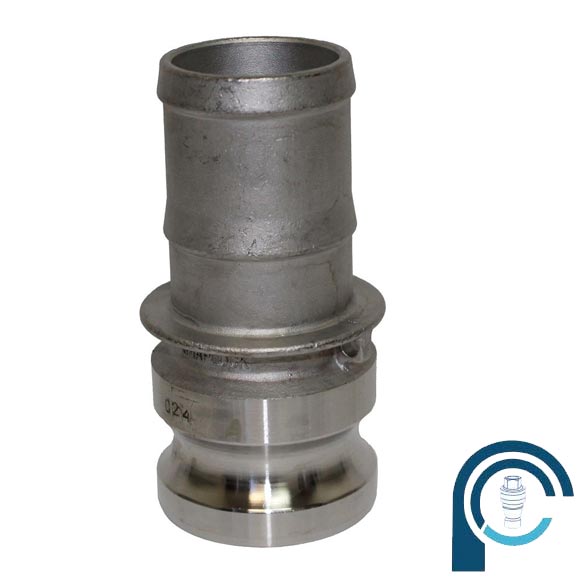

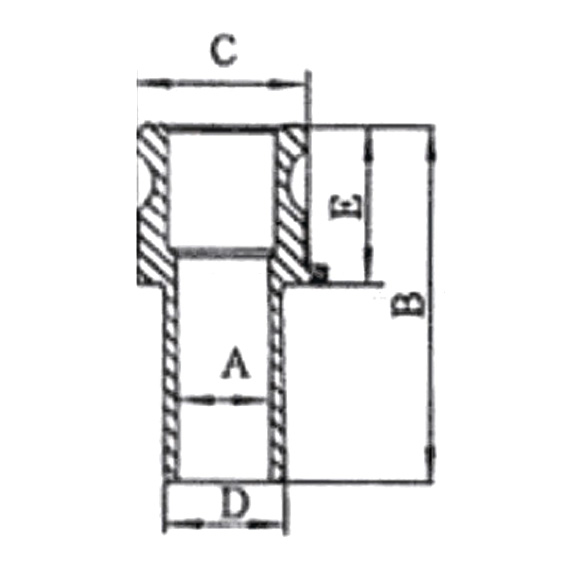

Camlock Fitting Type E is a male camlock fitting with a male adapter at one end and a hose shank on the other. The male adapter end connects to the female coupler end of female camlock fittings.
Camlock Fitting Type E is a male camlock fitting with a male adapter at one end and a hose shank on the other. The male adapter end connects to the female coupler end of female camlock fittings.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 14 | 19 | 24 | 28 | 35 | 48 | 58 | 72 | 98 | 122 | 145 |
| B | 98 | 98 | 110 | 121 | 125 | 140 | 158 | 170 | 182 | 196 | 220 |
| D | 20 | 20 | 26 | 33 | 39 | 52 | 65 | 77 | 103 | 130 | 155 |
| E | 40 | 40 | 46 | 56 | 56 | 61 | 65 | 66 | 70 | 72 | 79 |
| C | 34 | 34 | 38 | 48 | 56 | 66 | 80 | 102 | 132 | 154 | 184 |

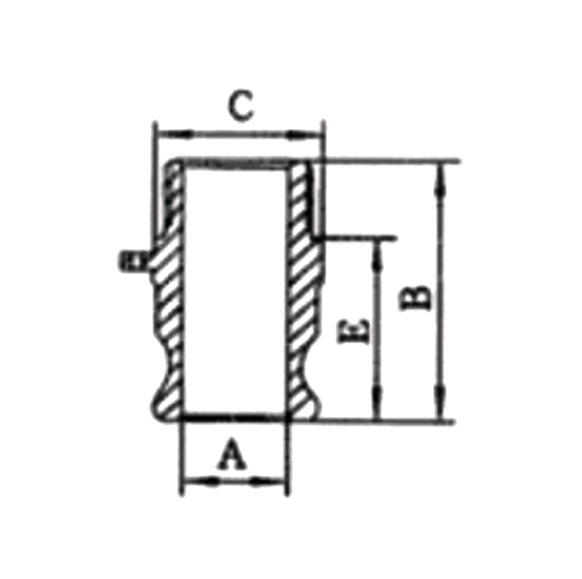

Type F

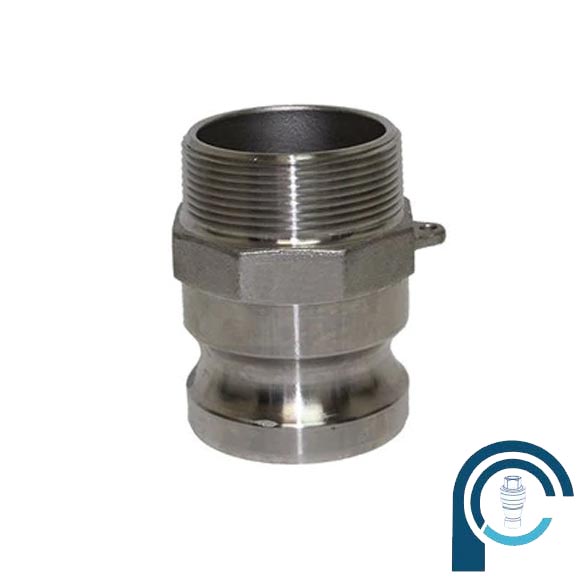

Camlock Fitting Type F is a male camlock fitting with a male adaptor at one end and a male thread on the other. The male adapter end connects to the female coupler end of female camlock fittings.
Camlock Fitting Type F is a male camlock fitting with a male adaptor at one end and a male thread on the other. The male adapter end connects to the female coupler end of female camlock fittings.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 21 | 21 | 24 | 28.5 | 36 | 45 | 56.5 | 73 | 98 | 122 | 148 |
| B | 56 | 56 | 72 | 80 | 84 | 88 | 100 | 106 | 114 | 121 | 130 |
| C | 32 | 32 | 40 | 48 | 56 | 67 | 83 | 96 | 127 | 154 | 190 |
| E | 39 | 39 | 48 | 48 | 56 | 61 | 62 | 69 | 74 | 79 | 82 |

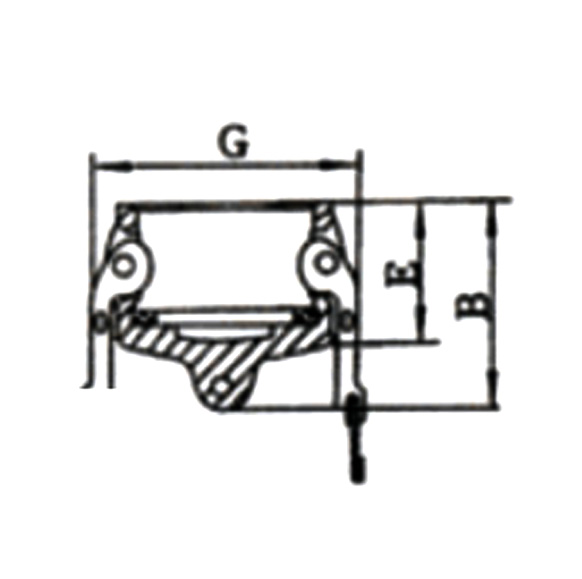

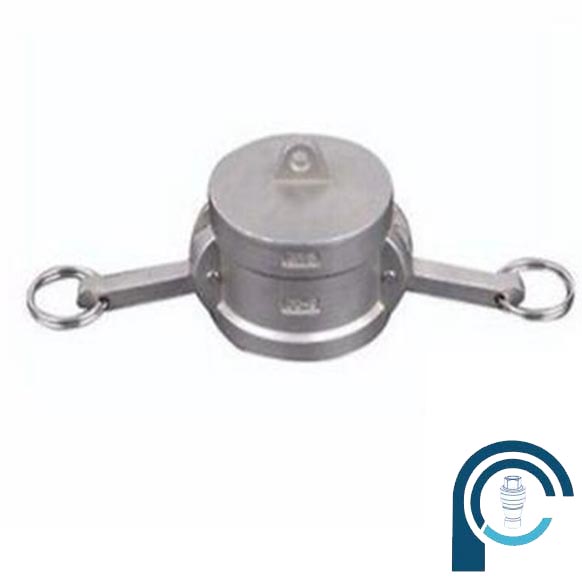

Type DC
Stainless steel camlock couplers DC are commonly used to close the end of Type A, E, and F adapters. Stainless steel 316 cam and groove couplings are suited for tough applications such as salt water, different chemicals, and liquids with stringent sanitary requirements. Stainless steel hose couplings outperform all other camlock couplings in terms of durability and performance, albeit being slightly more expensive.
Stainless steel camlock couplers DC are commonly used to close the end of Type A, E, and F adapters. Stainless steel 316 cam and groove couplings are suited for tough applications such as salt water, different chemicals, and liquids with stringent sanitary requirements. Stainless steel hose couplings outperform all other camlock couplings in terms of durability and performance, albeit being slightly more expensive.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| B | 45 | 45 | 54 | 65 | 69 | 80 | 84 | 85 | 94 | 94 | 112 |
| E | 32 | 32 | 40 | 48 | 49 | 54 | 59 | 60 | 62 | 62 | 72 |
| G | 53 | 53 | 60 | 78 | 85 | 96 | 110 | 127 | 156 | 185 | 220 |
Type DP

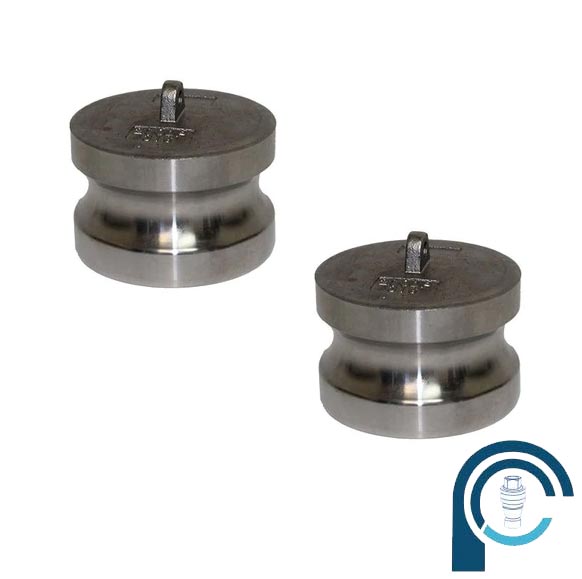

Dust Plugs (DP) serve as versatile accessories compatible with Type B, Type D, and Type C couplers, offering flexibility across various coupling systems. Their primary function is to effectively seal off and protect the end of connections when not in use, safeguarding against dust, debris, and other contaminants. The Type DP, specifically designed as a Male Adapter x Dust Plug, features a sealed construction on one side, ensuring comprehensive protection and maintaining the integrity of the connection.
Dust Plugs (DP) serve as versatile accessories compatible with Type B, Type D, and Type C couplers, offering flexibility across various coupling systems. Their primary function is to effectively seal off and protect the end of connections when not in use, safeguarding against dust, debris, and other contaminants. The Type DP, specifically designed as a Male Adapter x Dust Plug, features a sealed construction on one side, ensuring comprehensive protection and maintaining the integrity of the connection.
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| A | 21 | 21 | 24 | 28.5 | 36 | 45 | 56.5 | 73 | 98 | 122 | 149 |
| B | 37 | 37 | 44 | 55 | 64 | 68 | 70 | 80 | 80 | 80 | 98 |
| E | 24 | 24 | 30 | 38 | 41 | 43 | 45 | 52 | 48 | 48 | 58 |
Camlock Couplings by Materials

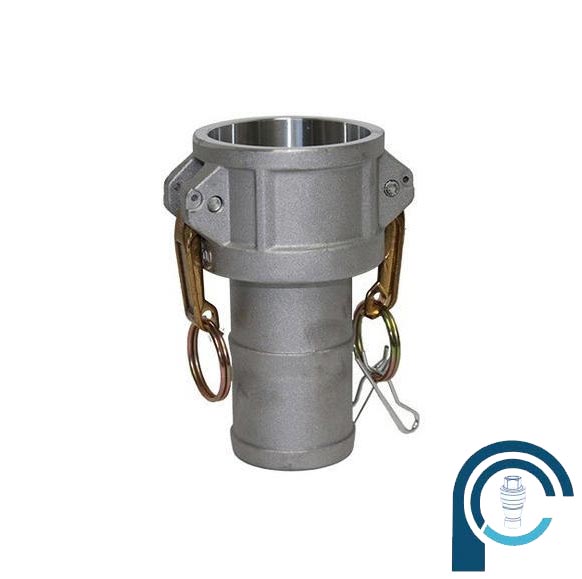

Aluminum camlock couplings (also known as fittings) enable you to swiftly connect and disengage your hose in a wide range of applications, including water, petroleum, and chemical transport.

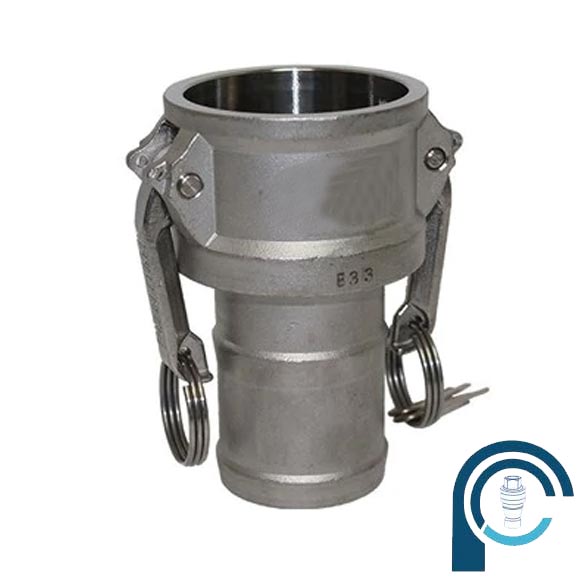

Stainless steel cam lock fittings enable quick and secure hose connections. Camlock couplings join by putting the grooved coupling into the cam coupling and then closing the cam or lever arms. Safety pins or locks keep the cam arms from accidentally disconnecting during use.

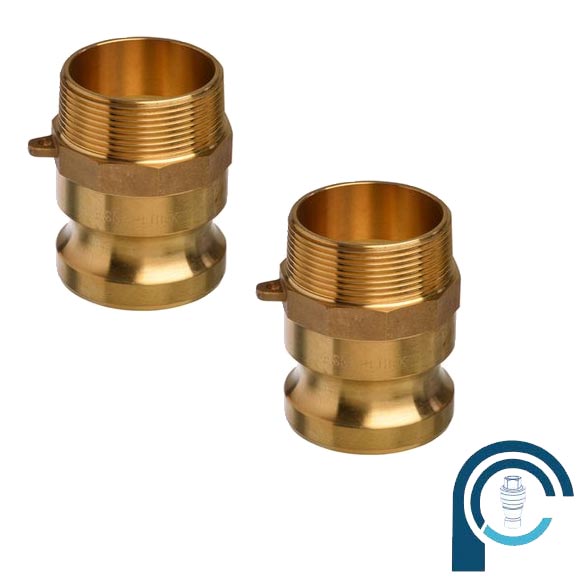

Brass camlock couplings enable easy connect/disconnect operations for IBC, pumps, tanks, and other applications. Brass is very resistant to corrosion in water, coolants, hydraulic fluids, petroleum products, and gasoline.
Features of Camlock Couplings
- Camlock couplings have eliminated the previous hazardous and time-consuming technique of joining via nut, drift pin, and bolt flange.
- The fittings are both sturdy and lightweight, and they are available in a variety of sizes to meet your specific camlock connection needs.
- Camlock couplings are designed to accommodate any existing pipe or flange layout.
- The permanently positioned O Ring face provides a durable and leak-proof seal. This reduces the risk of crushing fingers and hands, as well as the time required to install traditional gaskets between piping and flanges.
- All that is needed to lock, tighten, or release the camlock is a circular steel bar or a specialized wrench.
- The camlock coupling's sophisticated design allows for contact between the face of the mating flange and the cam. This precise wedging movement is ensured by the helical structure, which prevents it from coming free under typical operating conditions.
Application Of Camlock Coupling
Oil and Gas: Camlock couplings are commonly used in the oil and gas industry to transfer a variety of fluids, including gasoline, crude oil, natural gas, and hydraulic fluids. They are used in tanker trucks, refineries, pipelines, drilling operations, and well servicing.
Chemical Processing: Chemical processing companies use camlock couplings to securely and effectively convey chemicals, acids, solvents, and other corrosive compounds. They work in the chemical manufacturing, handling, and shipping industry.
Agriculture and Irrigation: Camlock couplings are commonly utilized in agricultural applications such as pulsation, water transport, and irrigation systems. They make it easier and safer to connect hoses, pipelines, and sprinklers.
Manufacturing and Industrial Processes: Manufacturing and industrial processes rely on Camlock couplings for air compressors, coolant lines, fluid transfer, and other industrial operations. They provide dependable and efficient equipment and machinery connections.
Construction and Mining: Construction and mining activities employ camlock couplings for dewatering, slurry transfer, and water supply. They enable lightning-fast assembly and removal of hoses and motors.
Pharmaceuticals and Biotechnology: Camlock couplings are utilized in the biotechnology and pharmaceutical sectors to transfer fluid during manufacturing and research activities. For critical jobs, they ensure effective and secure communication.
Chemical Processing: Chemical processing companies use camlock couplings to securely and effectively convey chemicals, acids, solvents, and other corrosive compounds. They work in the chemical manufacturing, handling, and shipping industry.
Agriculture and Irrigation: Camlock couplings are commonly utilized in agricultural applications such as pulsation, water transport, and irrigation systems. They make it easier and safer to connect hoses, pipelines, and sprinklers.
Manufacturing and Industrial Processes: Manufacturing and industrial processes rely on Camlock couplings for air compressors, coolant lines, fluid transfer, and other industrial operations. They provide dependable and efficient equipment and machinery connections.
Construction and Mining: Construction and mining activities employ camlock couplings for dewatering, slurry transfer, and water supply. They enable lightning-fast assembly and removal of hoses and motors.
Pharmaceuticals and Biotechnology: Camlock couplings are utilized in the biotechnology and pharmaceutical sectors to transfer fluid during manufacturing and research activities. For critical jobs, they ensure effective and secure communication.
Why Choose Perfect Engineers?
For almost three decades, Perfect Engineers has been manufacturing and supplying a wide range of Camlock Couplings and other products. These robustly designed and solidly built couplings are produced with cutting-edge materials and precision technology. We stand to fulfill global quality standards at our clients' end. Furthermore, our products are tested on a variety of quality characteristics. The entire collection is available in a variety of modified sizes and dimensions to satisfy the diverse requirements of our clients, and it is specifically designed to meet the need for a simple, positive coupler. Choose Perfect Engineers and fulfill your project needs with precision. Buy Yours Today!
