Mould Type Quick Release Couplings

Home / Our Product Range / Mould Type Quick Release Coupling

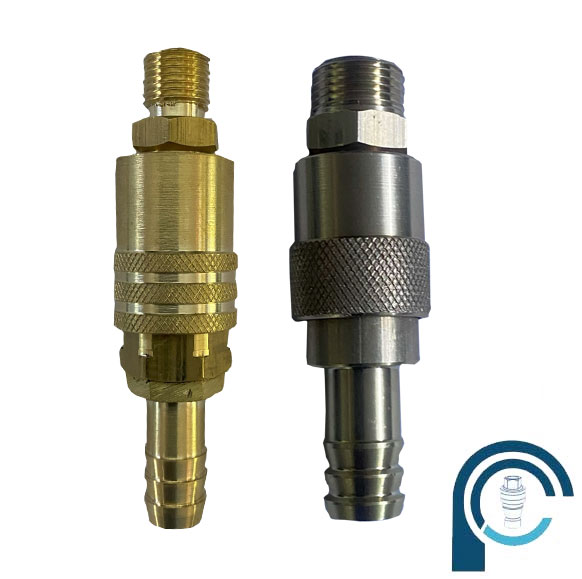

Mould Type Quick Release Coupling

Mould Type Quick Release Couplingconnect heating and cooling lines of the moulds with hoses feeding heating agent or cooling water.

Throughout injection procedure, molten plastic is injected into the mould which is having suitable temperature in each section, and then it must be cooled to take the product out.

This procedure is called thermostating. Mould Type Quick Release Coupling forthermostating must feature high flow rates, small outer dimensions (because the channels are deeply set and densely arranged in the mould), resistance to hot water, glycol, hot oil.


Mould Type Quick Release Coupling are made of brass and have a Viton seal to ensure resistance to high temperature (up to 200°C) and chemical abrasion.

Working pressure up to over ten bar.
Mould Type Quick Release Coupling comes in from many different manufacturers in various sizes and kinds with a precise plug profile, however they tend to be switchable i.e. having the same plug profile, they interconnect.
