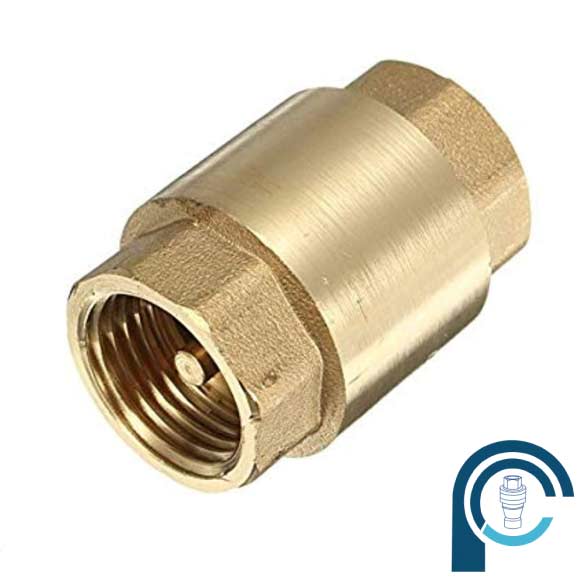

Non Return Valve

Buy Non Return Valve, Non Return Valves For Water, Non Return Valve Pneumatic & Non Return Valve For Water Pump at affordable Prices from Perfect Engineers - Leading Manufacturer, Supplier, and Exporter in India.

Non-return valve allows a medium to flow in only one direction and is used to ensure that the medium flows through a pipe in the correct direction, even when pressure conditions would normally cause reverse flow. The flow via the non-return valve results in a relatively substantial pressure loss, which must be considered while building the system.

In simple words Non return valves or NRVs are small, meek, and reasonable units whose main function is to allow fluid to only run in one direction.

At Perfect Engineers, we put Non Return Valve through many testing to ensure that it holds the best attributes. We are the top exporter and manufacturer of Non Return Valve in Mumbai, India. Order Couplings according to your project requirements by calling us at +91-8591096714 or fill out the Enquiry Form. To get additional information on Non Return Valve or any of our high-quality products, contact Perfect Engineers and receive info and quotations within hours.


Non Return Valve Specification

Company Perfect Engineers
Material Type Stainless steel, Aluminum & Brass
Size (Inch) 0.25 – 6.0
Pressure Rating of Valve 150# / 300# / 600#
PN 10 / PN 16 / PN 25 / PN 40 / PN 64 / PN 100
Flange To Flange Distance As Per ANSI B 16.10 / API 6D
End Connection Flanged End to ANSI B 16.5, Class 150 / 300 / 600
BS 10 Table D / E / F / H
PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64
DIN Standard / JIS Standard / IS Standard
Butt Weld End to ANSI B 16.25


Types of Non Return Valves

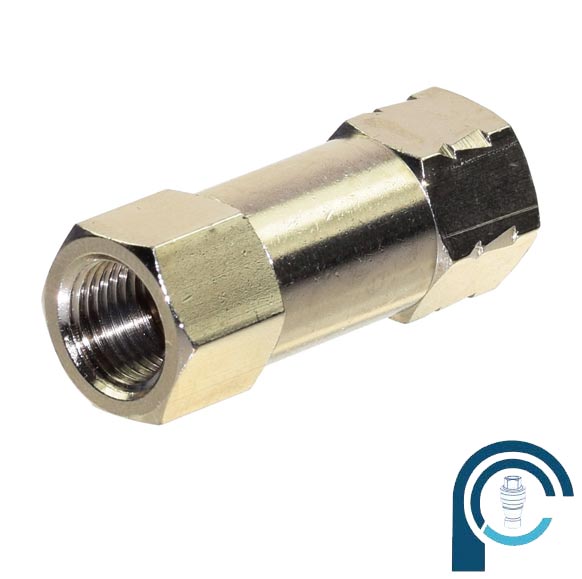

Pneumatic Non Return Valve
Perfect Engineers is one of the leading Manufacturers, Supplier of Brass Quick Release coupling. We provide superior quality products made according to Indian and international standards

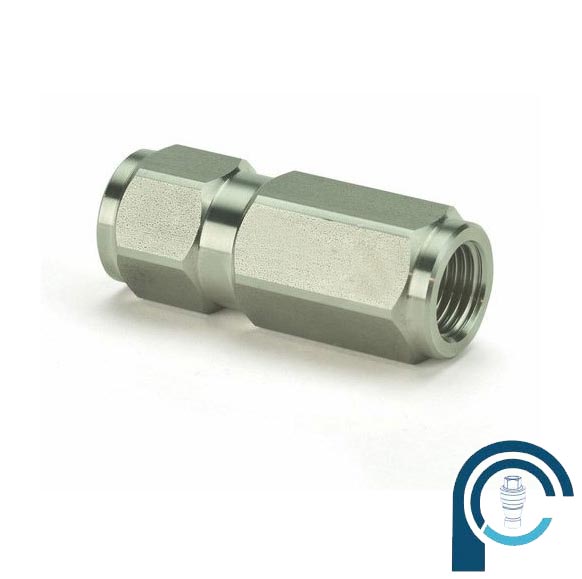

Hydraulic Non Return Valve
Hydraulic non-return valves, also known as check valves, are utilized in hydraulic systems to allow fluid flow in one direction while preventing reverse flow, maintaining system pressure and preventing damage to components.

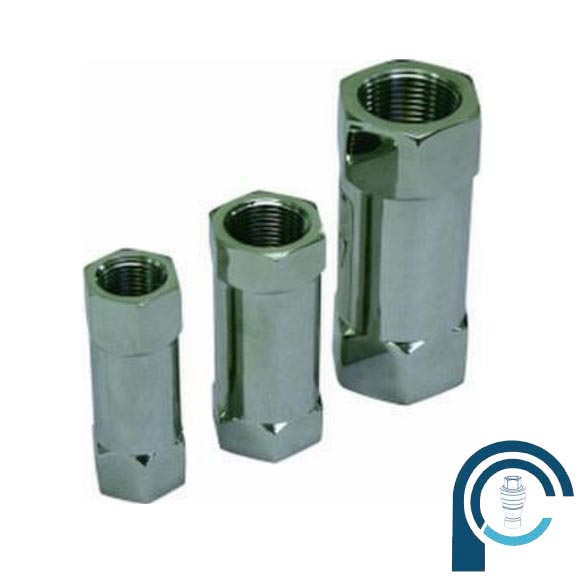

Check Valves
Check valves are a general category of non-return valves that are used in various fluid systems, including pneumatic, hydraulic, and plumbing systems. They allow flow in one direction while automatically blocking flow in the opposite direction, ensuring uni-directional flow and preventing backflow.



Non Return Valve Sizes

NPS DN mm 50 65 80 100 125 150 200 250 300 350 400 450 500 600 750
H mm 180 185 210 270 345 360 370 385 440 520 554 590 614 614 866
L-L1(RF-BW) mm 267 292 318 356 400 444 533 622 711 838 864 978 1016 1346 1594
L2(RTJ) mm 283 308 333 371 416 460 549 638 727 854 879 994 1036 1368 1619


Features of Non Return Valve

  • Protection against Contamination: NRVs guarantee that fluids flow solely in the appropriate direction, preventing contamination and maintaining purity.
  • Energy Saving: By reducing fluid backflow, NRVs help to conserve energy and lower operational costs.
  • Extended Equipment Life: Preventing backflow decreases stress on equipment, resulting in longer service life.
  • Improved System Efficiency: NRVs help to maintain consistent flow rates, which improves overall system efficiency.
  • Enhanced Safety: In sectors that work with hazardous products, NRVs add an added degree of protection by reducing leaks and spills.


Application Of Non Return Valve

  • Piping Systems: Non-return valves are commonly installed in piping systems to ensure that fluids flow in one direction only, preventing backflow and maintaining system integrity. They are used in both industrial and residential piping systems to prevent contamination and damage to equipment.
  • Hydraulics: In hydraulic systems, non-return valves are essential components for controlling the flow of hydraulic fluids. They allow fluid to flow in one direction while preventing reverse flow, ensuring smooth operation and preventing damage to hydraulic components.
  • Pneumatics: Non-return valves play a crucial role in pneumatic systems by allowing air or gasses to flow in one direction only. They are used to maintain pressure and control the direction of airflow in pneumatic circuits, ensuring efficient operation of pneumatic machinery and equipment.


Why Choose Perfect Engineers?

For almost three decades, Perfect Engineers has been manufacturing and supplying a wide range of Non Return Valve and other products. These robustly designed and solidly built couplings are produced with cutting-edge materials and precision technology. We stand to fulfill global quality standards at our clients' end. Furthermore, our products are tested on a variety of quality characteristics. The entire collection is available in a variety of modified sizes and dimensions to satisfy the diverse requirements of our clients, and it is specifically designed to meet the need for a simple, positive coupler. Choose Perfect Engineers and fulfill your project needs with precision. Buy Yours Today!
