Flat Face Quick Release Coupling

Home / Our Product Range / Flat Face Quick Release Coupling

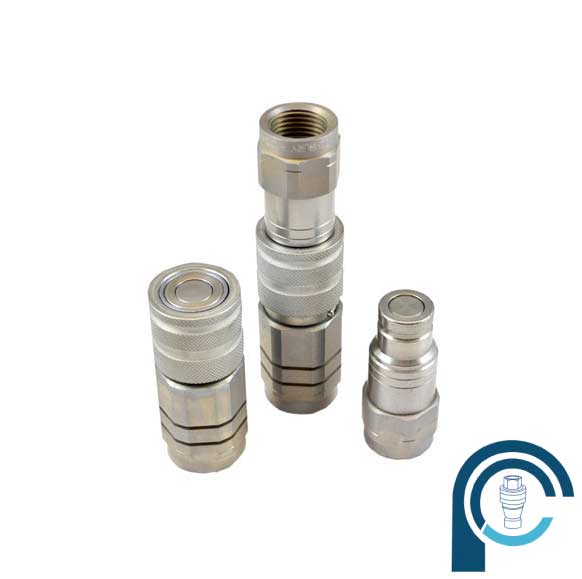

Flat Face Quick Release Coupling (QRC)

Buy Flat Face Couplings, Flat Face Quick Release Couplings, Quick Change Coupling at affordable Prices from Perfect Engineers - Leading Manufacturer, Supplier, and Exporter in India. Flat face couplings consist of a nozzle and a receiver that sit flush or flat against each other during fluid transfer. Flat Face Quick Release Couplings include a nozzle and a receiver component. The 'coupling' refers to a matching pair that has been joined or coupled together. Flat face couplings are specifically developed for applications requiring minimal leakage while filling and no fluid loss during rapid disconnect. This minimizes environmental risk and reduces expensive fluids ending up on your personnel, your machinery, or the ground. Perfect Engineers, a leading quick release coupling manufacturer in India offers Flat face couplings for different applications. Flat Face Quick Release Coupling are designed to be dependable and constructed from long-lasting materials that can withstand the wear and tear that is common on industrial work sites around the world.

At Perfect Engineers, we put Flat Face QRC through many testing to ensure that it holds the best attributes. We are the top exporter and manufacturer of Flat Face Quick Release Coupling in Mumbai, India. Order Couplings according to your project requirements by calling us at +91-8591096714 or fill out the Enquiry Form. To get additional information on Flat Face Quick Release Coupling or any of our high-quality products, contact Perfect Engineers and receive info and quotations within hours.


Flat Face Quick Release Coupling Specification

Company Perfect Engineers
Size 1/8" TO 2"
Thread NPT, BSPP
Connection FEMALE TO FEMALE, FEMALE TO MALE, MALE TO MALE
Coupler Pressure Rating UPTO 6000 PSI
Media  HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER, COLD WATER, SEA WATER, CHEMICAL, FUEL, VACUUMS
Media Temperature (-40* C TO 300*C) RANGE AS PER PRESSURE
Body Type BAR STOCK
Coupler Seal NITRILE, VITON, EPDM
Material SS 316, SS 304, BRASS, SS 316 TI, CS, COPPER, SUPER DUPLEX, DUPLEX, MONEL, INCONEL, SMO 254, HASTELLOY, TITANIUM, ALLOY 20, 904L & ALL OTHER ALLOYS


Flat Face Coupling Sizes

Flat Face Quick Release Coupling ISO L1 L L2 CH2 D2 D1 CH1
G1/4 6.03 48 85 48 22 16.01 29.05 22
G3/8 10 61.05 64 33.05 27 19.07 19.07 27
G1/2 12.05 74 124 68 32 24.05 39.05 32
G3/4 16 78.05 131 70.05 36 27 43.05 36
G1 19 93 156 85.05 45 30 49.05 45
G 1 1/4 25 106 173 90 55 36 56.05 55


Flat Face Quick Release Coupling Types

Flat Face Coupling

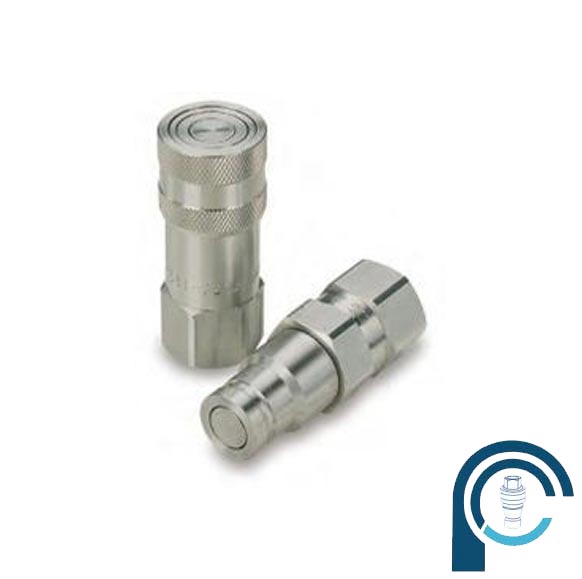

Flat face couplings, also known as flat face quick couplers, are a form of hydraulic coupling that consists of a nozzle and a receiver and provides significant advantages in a variety of applications. These couplings are intended to create a secure, leak-free connection between hydraulic hoses and equipment.

SS 304 Flat Face QRC

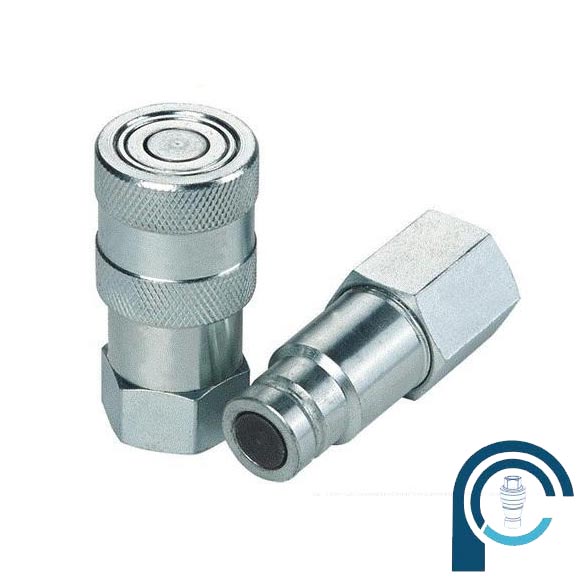

SS 304 flat face Quick Release couplings are known for their cleanliness; the flat faces are easily cleaned and prevent fluid loss during discontinuation or disconnection. Every SS 304 flat face Quick Release coupling we sell is strong, dependable, and can withstand years of usage or disuse due its construction from high-quality stainless steel 304.

MS Flat Face QRC

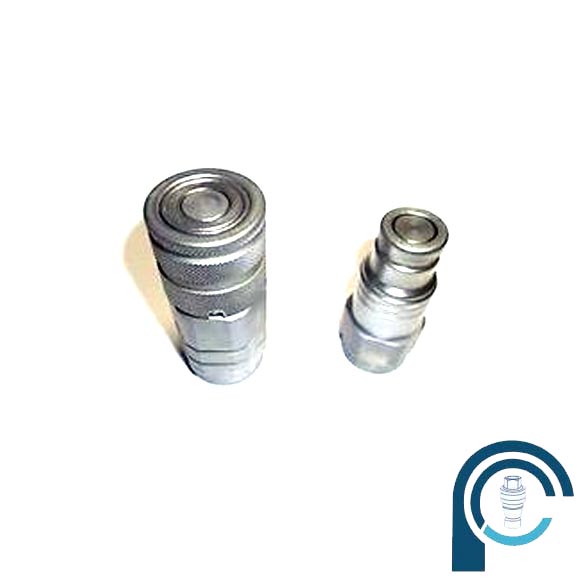

MS Flat Face QRC refers to a Quick Release Coupling with a flat face design, typically made from Mild Steel. The coupling features a flat mating surface on both the male and female ends, ensuring a tight seal when connected. This design minimizes the risk of leakage and enhances the efficiency of fluid transfer or containment.



Features of Flat Face Quick Release Coupling

Leak-free connections: One of the key benefits of flat face couplings is their ability to provide a dependable, leak-free connection. The flat face design guarantees a tight seal between the male and female portions of the coupling, reducing the possibility of fluid leakage. This is especially critical in high-pressure hydraulic systems, where leaks can cause costly downtime and safety hazards.

Easy to connect and disconnect: Flat face couplings feature a simple and efficient connection and disconnection procedure. They have a push-to-connect mechanism that enables operators to rapidly and effortlessly join or separate hydraulic hoses without the need for specialized tools.

Minimal fluid loss: When disconnecting flat face couplings, the minimum fluid loss feature is a significant advantage. The flat face design reduces the amount of hydraulic fluid that escapes from the coupling, reducing the risk of environmental contamination.

Reduced air inclusion: This coupling minimizes the amount of air that enters the hydraulic system during connection and disconnection. This is crucial as air in the system can cause performance issues, reduced efficiency, and the flat face design helps to limit air inclusion, ensuring optimal system performance.


Application Of Flat Face Quick Release Coupling

Our flat face couplers are suitable for an extensive range of environments and applications, including any operation that requires minimizing or eliminating fluid loss or contamination, settings where static pressure is locked into the system, and low to medium and heavy corrosive environments. Our flat face coupling devices are used in mobile construction, agriculture, mining activities, and a variety of other applications around the world.


Why Choose Perfect Engineers?

For almost three decades, Perfect Engineers has been manufacturing and supplying a wide range of Flat Face Quick Release Coupling and other products. These robustly designed and solidly built couplings are produced with cutting-edge materials and precision technology. We stand to fulfill global quality standards at our clients' end. Furthermore, our products are tested on a variety of quality characteristics. The entire collection is available in a variety of modified sizes and dimensions to satisfy the diverse requirements of our clients, and it is specifically designed to meet the need for a simple, positive coupler. Choose Perfect Engineers and fulfill your project needs with precision. Buy Yours Today!
