Welded Ball Valves – Leak-Proof, Maintenance-Free Solutions for High-Integrity Piping Systems

Looking for zero-leakage, tamper-proof valves that perform reliably in buried, high-pressure, or safety-critical applications? At Perfect Engineers, we manufacture and supply Welded Ball Valves (also known as Fully Welded or Butt Weld Ball Valves) designed for gas pipelines, steam networks, underground lines, fire protection systems, and district heating plants.

Our welded valves offer maintenance-free performance, compact construction, and exceptional sealing integrity—making them ideal for long-term buried or high-risk environments where flange joints are undesirable.

Table of Contents

What Is a Welded Ball Valve?

A Welded Ball Valve is a valve in which the valve body and pipe ends are permanently joined by welding, eliminating the use of flanges or bolts. These valves are:

  • Ideal for underground installation or buried service
  • Maintenance-free with no external leakage points
  • Designed for high-pressure and high-temperature media
  • Available in Butt Weld, Socket Weld, and Fully Welded Body designs

Key Features of Our Welded Ball Valves

  1. Body Types: Fully Welded, Top Entry, or Side Entry
  2. End Connections: Butt Weld (BW), Socket Weld (SW), Plain End
  3. Sizes: ½” to 24” or custom-built on request
  4. Pressure Classes: PN16 to PN160 / Class 150 to 1500
  5. Suitable for gas, steam, oil, condensate, and aggressive fluids
  6. Available in WCB, SS316, SS304, A105, Duplex, and Inconel
  7. Fire-safe and anti-static designs available (API 607 certified)

Type of Welded Ball Valve

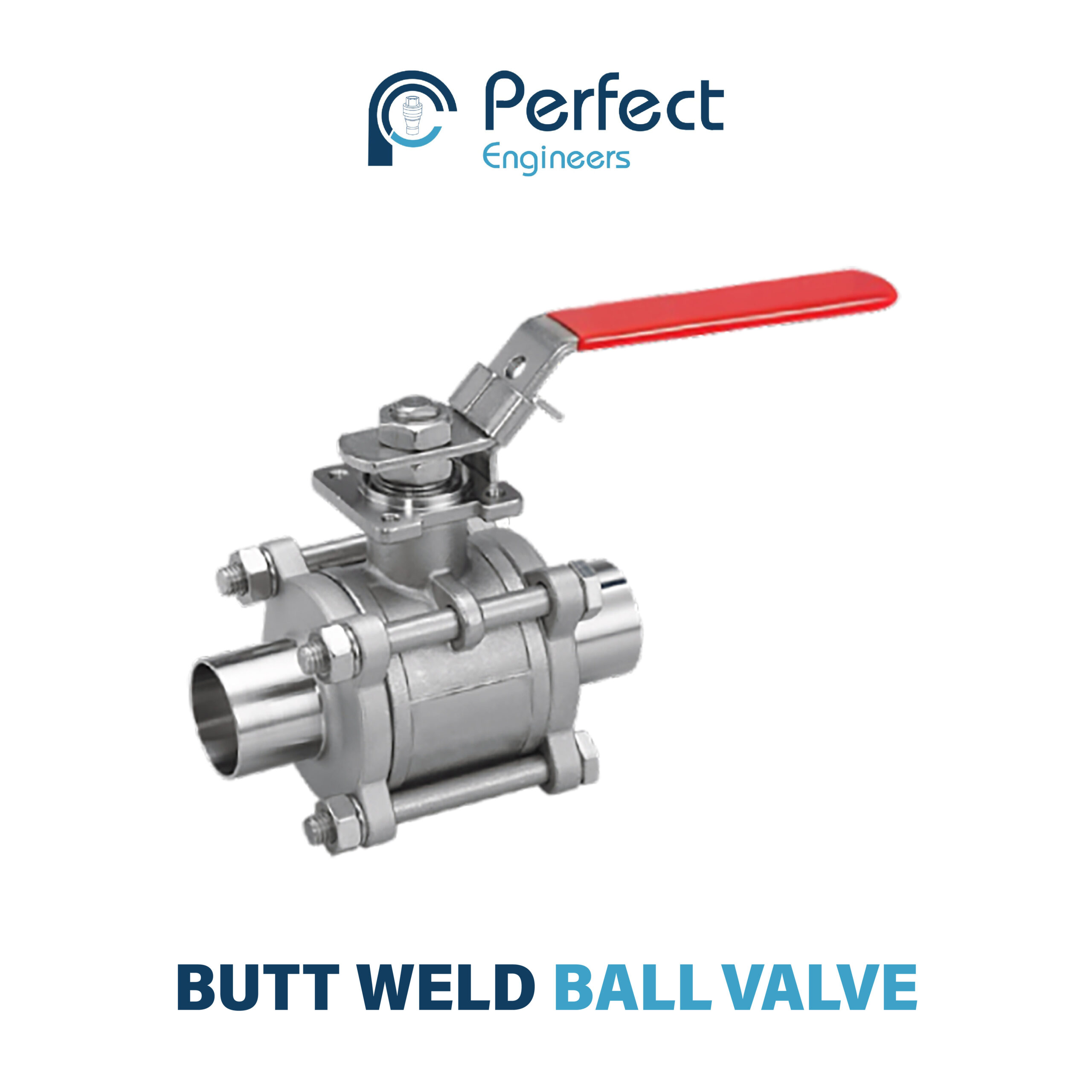

Butt Weld Ball Valve

Butt Weld Ball Valve

When long-term reliability, zero leakage, and secure pipeline integration are essential, a Butt Weld Ball Valve is the perfect choice.

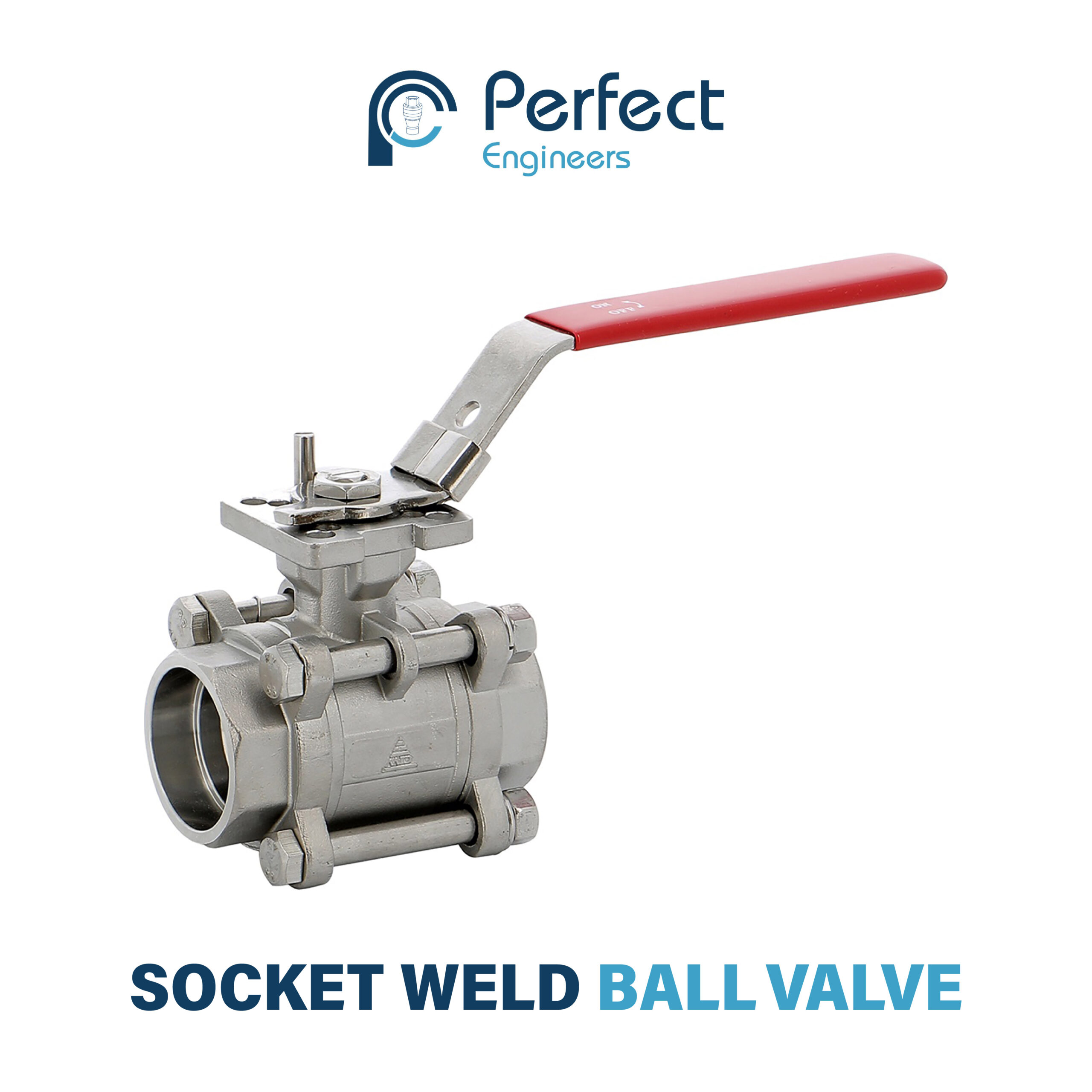

Socket Weld Ball Valve

Socket Weld Ball Valve

Need a compact, strong, and leak-proof valve for high-pressure or small-bore piping systems? At Perfect Engineers, we manufacture

Technical Specifications

Parameter Specification
Size Range ½” to 24” (DN15 to DN600)
Pressure Rating Class 150 to Class 1500 / PN16 to PN160
Body Materials WCB, A105, SS316, SS304, Duplex, Alloy 20
Seat Options PTFE, PEEK, Graphite, Metal Seated
End Connections Butt Weld, Socket Weld, Plain End
Operation Manual, Gear, Pneumatic, Electric
Standards ASME B16.34, API 6D, ISO 5211, API 607

Types of Welded Ball Valves We Offer

  • Fully Welded Ball Valves – Ideal for buried or tamper-proof installations
  • Top Entry Welded Valves – Easy maintenance without removing from pipeline
  • Metal Seated Welded Valves – Withstand high temp, slurries, or abrasive fluids
  • Double Block & Bleed Welded Valves – For safety isolation in critical lines
  • High-Pressure Welded Valves – Designed for 1000+ PSI service
  • Trunnion Mounted Welded Valves – For low torque in large-diameter lines

Contact Us for Pricing & OEM Support

Call

+91-9004860491

Website

www.perfectqrc.com

Applications of Welded Ball Valves

  1. Natural gas distribution pipelines
  2. Underground steam condensate lines
  3. District heating and cooling loops
  4. LPG / fuel transfer lines
  5. Firewater underground piping
  6. Pipeline skids and pressure-reducing stations
  7. Oil and chemical storage terminal lines
  8. Remote gas wellhead isolation systems
  9. High-pressure natural gas or steam networks

Installation & Maintenance Tips

  • Use certified welders and follow ASME B31.3 / B31.8 welding codes
  • Ensure valve orientation is correct before welding
  • Allow cooling before pressure testing
  • Always verify pressure class and seat compatibility
  • Conduct NDT or radiographic weld inspections as per pipeline codes

FAQs

Yes—all our valves come with ISO 5211 actuator pads and are compatible with electric or pneumatic actuators.

Absolutely—our designs conform to API 607 fire-safe standards, ideal for gas, oil, or flammable services.

Top entry welded valves allow access; fully welded body valves are non-serviceable by design.

Yes—each welded ball valve is hydro-tested and comes with MTC, test certificates, and QA/QC documentation.
