Union Bonnet Needle Valve Manufacturer in India | Serviceable Precision Valves – Perfect Engineers

Engineered for Strength. Designed for Serviceability.

At Perfect Engineers, we manufacture robust and leak-tight Union Bonnet Needle Valves, trusted for their field-serviceable design, pressure integrity, and smooth operation in medium to high-pressure flow systems.

With a two-piece body design, these valves offer reliable sealing and allow for easy maintenance, repacking, and stem replacement—ideal for demanding environments like refineries, chemical plants, and gas distribution panels.

Table of Contents

Union Bonnet Needle Valve Manufacturer in India | Serviceable Precision Valves – Perfect Engineers

What is a Union Bonnet Needle Valve?

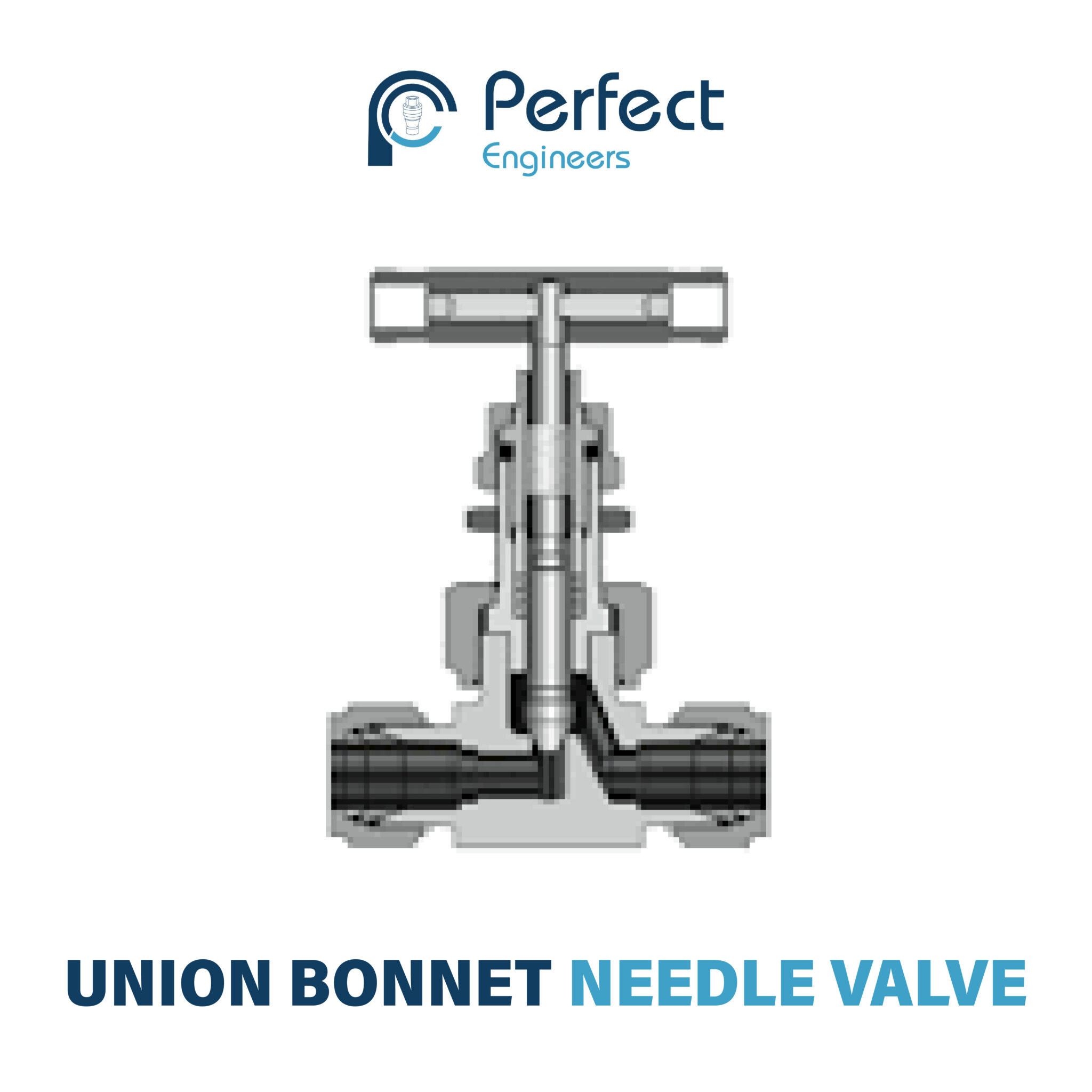

A union bonnet needle valve consists of a separate valve body and bonnet held together by a union nut. This construction offers ease of disassembly, allowing the stem and packing to be serviced or replaced without removing the valve from the system.

Ideal for medium-to-high pressure systems, where frequent repacking or tight shut-off performance is critical.

Key Features

  1. Two-piece design with threaded union bonnet for easy service
  2. Pressure range: up to 6,000 PSI (higher ratings available)
  3. Material: SS 316, SS 304, Brass, Monel, CS, Hastelloy
  4. End connections: NPT / BSP / Compression / Flanged / SW / BW
  5. Sizes: ¼” to 1”
  6. Bubble-tight shut-off with PTFE, PEEK, or Graphite seat options

Technical Specifications

Parameter Specification
Body Type Union Bonnet (Serviceable)
Pressure Rating Up to 6000 PSI (Standard)
Temperature Rating 20°C to +425°C
Seat Material PTFE, PEEK, Graphite, Metal-to-Metal
Sizes Available ¼”, ⅜”, ½”, ¾”, 1”
End Connections BSP/NPT, Compression, Flanged, SW/BW
Valve Design Straight, Angle, Block & Bleed
Certification EN 10204 3.1, ISO 9001:2015, CE, IBR
Testing Hydrostatic & Pneumatic (API / BS EN)

Union Bonnet vs Integral Bonnet – What’s the Difference?

Feature Union Bonnet Valve Integral Bonnet Valve
Serviceability 🟢 Repackable, stem removable 🔴 Not serviceable (1-piece)
Leak-tightness 🟢 Excellent with packing 🟢 Excellent (no joint)
Construction 2-piece with union nut Monolithic (machined)
Best Use Frequent maintenance areas Zero-leak instrumentation use



Contact Us for Pricing & OEM Support

Call

+91-9004860491

Website

www.perfectqrc.com

Ideal Applications

  1. Chemical process skids & injection lines
  2. Sampling and analyzer loops
  3. Gas distribution manifolds & panels
  4. Hydraulic & pneumatic system shut-off points
  5. Steam tracing and boiler control lines
  6. Flammable and inert gas service
  7. RO and water treatment dosing units

Why Perfect Engineers?

  • Manufactured in our ISO 9001:2015 certified facility
  • Precision machining for perfect stem-bonnet alignment
  • Supplied with Hydro Test Certificate, MTC, IBR/CE, and TPI
  • Customized end types, handle options & OEM branding
  • Export-ready with HS code, traceability & laser marking

FAQs – Union Bonnet Needle Valves

Our standard range goes up to 6,000 PSI, with custom options up to 10,000 PSI.

Yes. With proper material and seat selection, they can be used in toxic, corrosive, and high-pressure gas systems.

Yes. We offer panel-mountable union bonnet valves with locking nuts and front-face plates.

Every valve is 100% hydro and pneumatic tested, and documentation is provided with the shipment.
