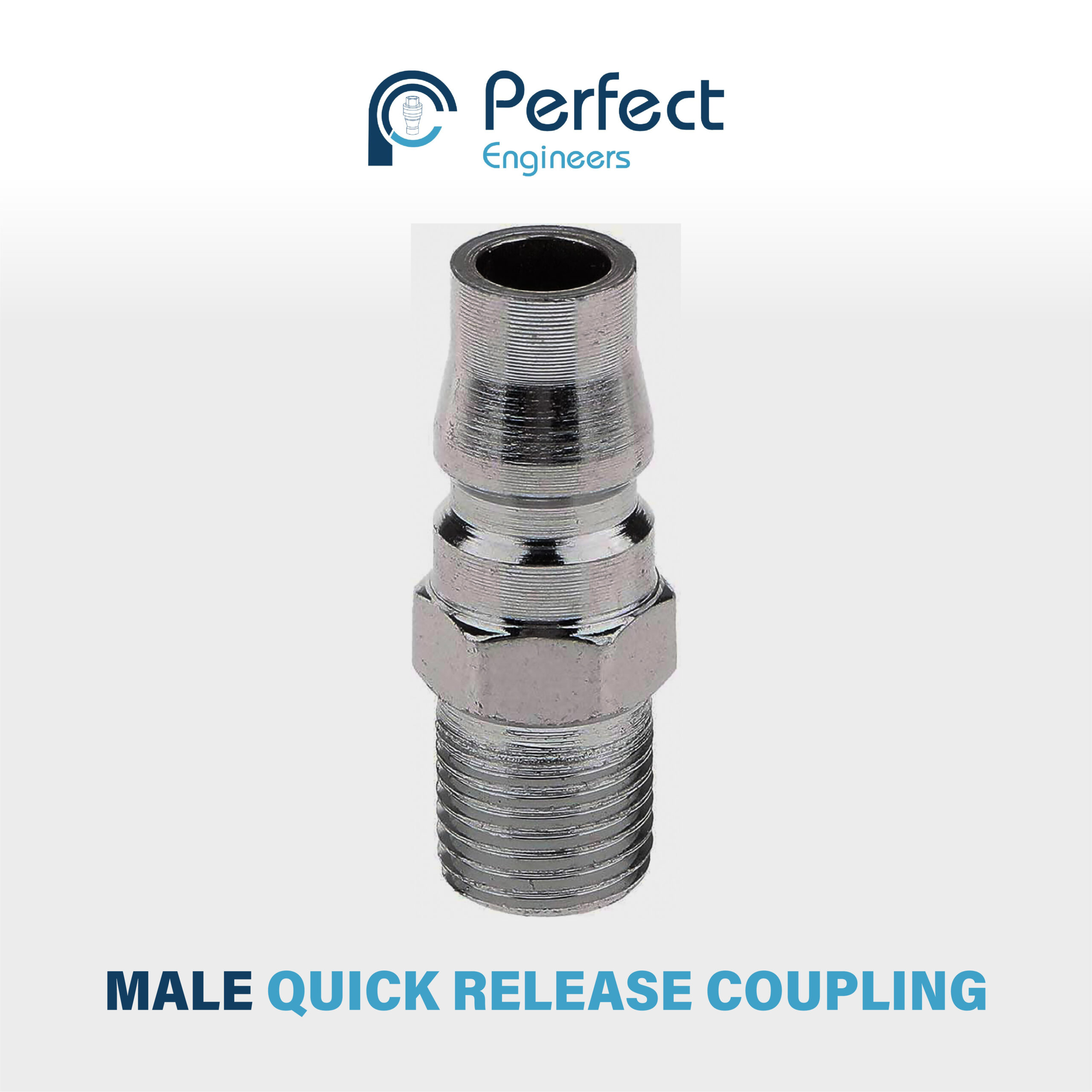

Male Quick Release Coupling – Engineered for Reliable, Leak-Free Connection Across Industrial Systems

Perfect Engineers offers a full range of Male Quick Release Couplings (QRCs) suitable for fluid and gas transfer systems requiring high pressure, precision fit, and secure disconnection. These couplings are designed to connect with female QRC sockets and are available in multiple thread standards, materials, and sealing options.

Table of Contents


Why Choose Male QRCs?

  • Standardized fit with all ISO A/B & Flat Face female couplers
  • Quick and secure plug-in connection for all system types
  • Available in stainless steel, brass, carbon steel, aluminium, and exotic alloys
  •  Offered with hose tail, threaded end, and customized connectors

Available Male QRC End Options

  1. Threaded Male (BSP/NPT)
  2. Hose Tail / Hose Barb
  3. Weld-End Male Plug
  4. Push-to-Connect Insert

Technical Specifications

Parameter Specification
Size Range 1/4″ to 2″
Pressure Rating Up to 10,000 PSI (depending on material)
Connection Type Male Plug / Insert
Threads BSP, NPT, Metric, UNF
Compatible With ISO 7241-A/B, ISO 16028, DIN, SAE female sockets
Materials SS 304/316/316L, Brass, CS, Aluminium, Titanium, Monel, Inconel, Hastelloy
Seal Options NBR, Viton, EPDM, PTFE, Kalrez









Contact Us for Pricing & OEM Support

Call

+91-9004860491

Website

www.perfectqrc.com

Key Application Areas

  1. Hydraulic power units
  2. Pneumatic tool lines
  3. Water and cooling circuits
  4. Oil, fuel, and chemical transfer skids
  5. Mobile and industrial maintenance vehicles

Why Male QRCs from Perfect Engineers?

  1. CNC machined to global tolerance standards
  2. Pressure tested and supplied with documentation
  3. Fully compatible with our Female QRC range
  4. OEM private labeling and custom fittings available

Supply & Export Reach

We supply and export to major hydraulic hubs:

Exported To:

USA, Germany, UAE, South Korea, Malaysia, Vietnam, South Africa, Qata

India Supply Locations:

Mumbai, Pune, Ahmedabad, Delhi, Chennai, Coimbatore, Baroda, Hyderabad

FAQs

Absolutely. Seal and thread type are fully customizable.

Yes. We offer individual plugs or complete coupler sets.

Use SS 316, Hastelloy, or Monel for aggressive chemicals.

Yes. We provide TPI certification as required.

Ready to Connect Faster, Safer, Smarter?

Explore Configurations, Compare Materials, and Get Prices Fast
We serve purchase heads, OEMs, and end-users with tailored Male Quick Release Coupling – Engineered for Reliable, Leak-Free Connection Across Industrial Systems recommendations and commercial pricing.
