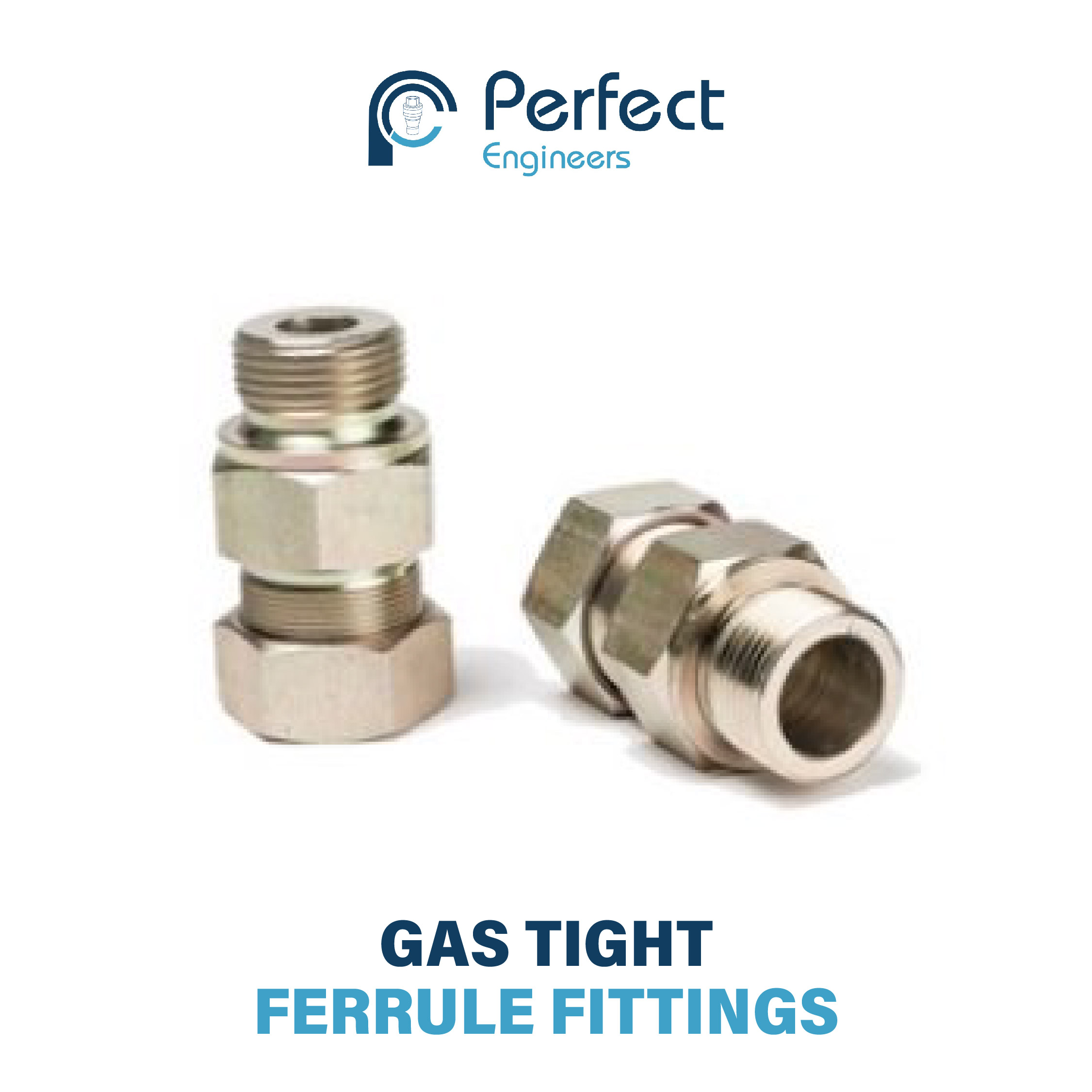

Perfect Engineers, under its high-integrity brand PE-LOCK, is a trusted manufacturer and global supplier of Gas Tight Ferrule Fittings—designed for ultra-reliable, leak-free performance in pressurized gas, vacuum, and high-purity flow control systems. These fittings ensure a zero-leak seal even under thermal cycling, vibration, and high-pressure differentials, making them ideal for analytical, cryogenic, industrial gas, and instrumentation applications.
Engineered with precision double ferrule sealing, PE-LOCK Gas Tight Fittings are manufactured to meet global gas safety standards, ensuring performance in toxic, flammable, or ultra-clean gas systems.
Gas tight ferrule fittings are precision-engineered double ferrule compression connectors that create a metal-to-metal seal around the tube, ensuring zero gas leakage. These fittings are used to connect tubing to tubing or tubing to threaded ports in systems where gas containment, purity, and leak integrity are mission-critical.
They are widely used in:
| Parameter | Specification |
| Tube Sizes | 1/16” to 1” (1.5 mm to 25 mm OD) |
| Thread Types | NPT, BSP, BSPT, UNF, ISO, SAE |
| Pressure Range | Up to 6,000 PSI (414 bar) |
| Temperature Range | -269°C to +400°C |
| Materials | SS316L, Brass, Inconel, Monel, Hastelloy, Titanium |
| Test Options | Helium Leak Test, Pressure Test, Visual/Dimensional QC |
| Certifications | ISO 9001:2015, EN 10204 3.1, Helium Leak Report (on request) |
| Compatibility | Interchangeable with Swagelok®, Parker®, Hy-Lok® fittings |
Tube-to-Tube Connectors
Tube-to-Thread Connectors
Specialty Fittings
+91-9004860491
www.perfectqrc.com
These fittings are essential in industries and systems where gas leak integrity is non-negotiable:
Weldable Bulkhead Types by Tube End:
Thread Options (if needed):
Yes. Electropolished and passivated options are available for ultra-clean environments.
Yes. Optional 100% helium leak testing is available on request.
Yes. Our ferrule fittings are dimensionally and functionally interchangeable.
We offer Inconel, Monel, Hastelloy, and Titanium for aggressive or reactive gas systems.
Absolutely. These fittings are designed for both vacuum and cryogenic applications.
Yes. BSP × NPT and other hybrids are available on request.
MOQ is flexible. Typical delivery within 7–12 working days.
Yes. Full OEM/private branding and compliance documentation are standard.
Yes. Metric and inch sizes are both supported.
