Compression Fitting Ball Valves – Leak-Proof Flow Control for Instrumentation & Small-Bore Tubing Systems

Looking for precise, vibration-resistant, and tool-free connections for your instrumentation panels, lab setups, or hydraulic circuits? At Perfect Engineers, we manufacture and supply high-quality Compression Fitting Ball Valves designed to ensure leak-free, compact flow control in gas, air, steam, chemical, and liquid transfer lines.

Ideal for small-bore tubing systems, these valves provide quick installation with double ferrule compression ends, and are trusted in refineries, pharma, R&D labs, analytical skids, and high-purity systems.

Table of Contents

What is a Compression Ball Valve?

A Compression Fitting Ball Valve is a quarter-turn shut-off valve with tube connection ends that use single or double ferrule compression fittings to create a strong, vibration-proof seal on metal or plastic tubing—no welding or threading required.

These are ideal for:

  • 1/4” to 1” OD tubing lines
  • Instrumentation & analytical systems
  • Chemical injection skids
  • High-purity or clean process setups

Key Features of Our Compression Ball Valves

  1. Tube Sizes: 1/4”, 3/8”, 1/2”, 3/4”, 1” (or 6mm–25mm OD)
  2. Tube Sizes: 1/4”, 3/8”, 1/2”, 3/4”, 1” (or 6mm–25mm OD)
  3. Material: SS316, SS304, Brass, Monel, Hastelloy
  4. Leak-tight design with PTFE or PEEK seats
  5. 2-way and 3-way flow configurations
  6. Blowout-proof stem, compact handle
  7. Factory tested for 100% leak integrity under pressure

Type of Compression Fitting Ball Valves

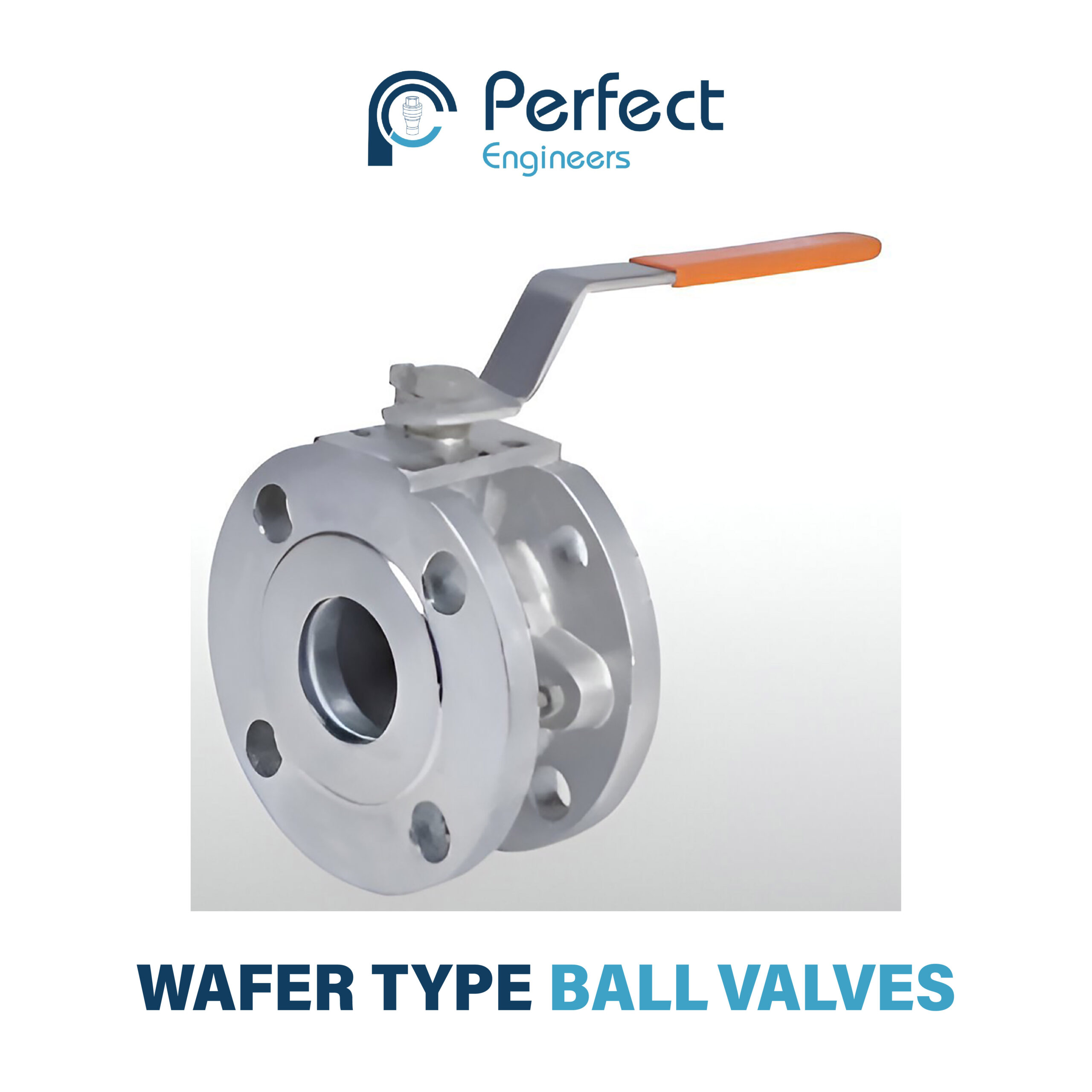

Wafer Type Ball Valves

These valves are designed to fit between flanges without the need for bolt holes on the valve body—making them easier to install, remove, and maintain in tight pipeline layouts.

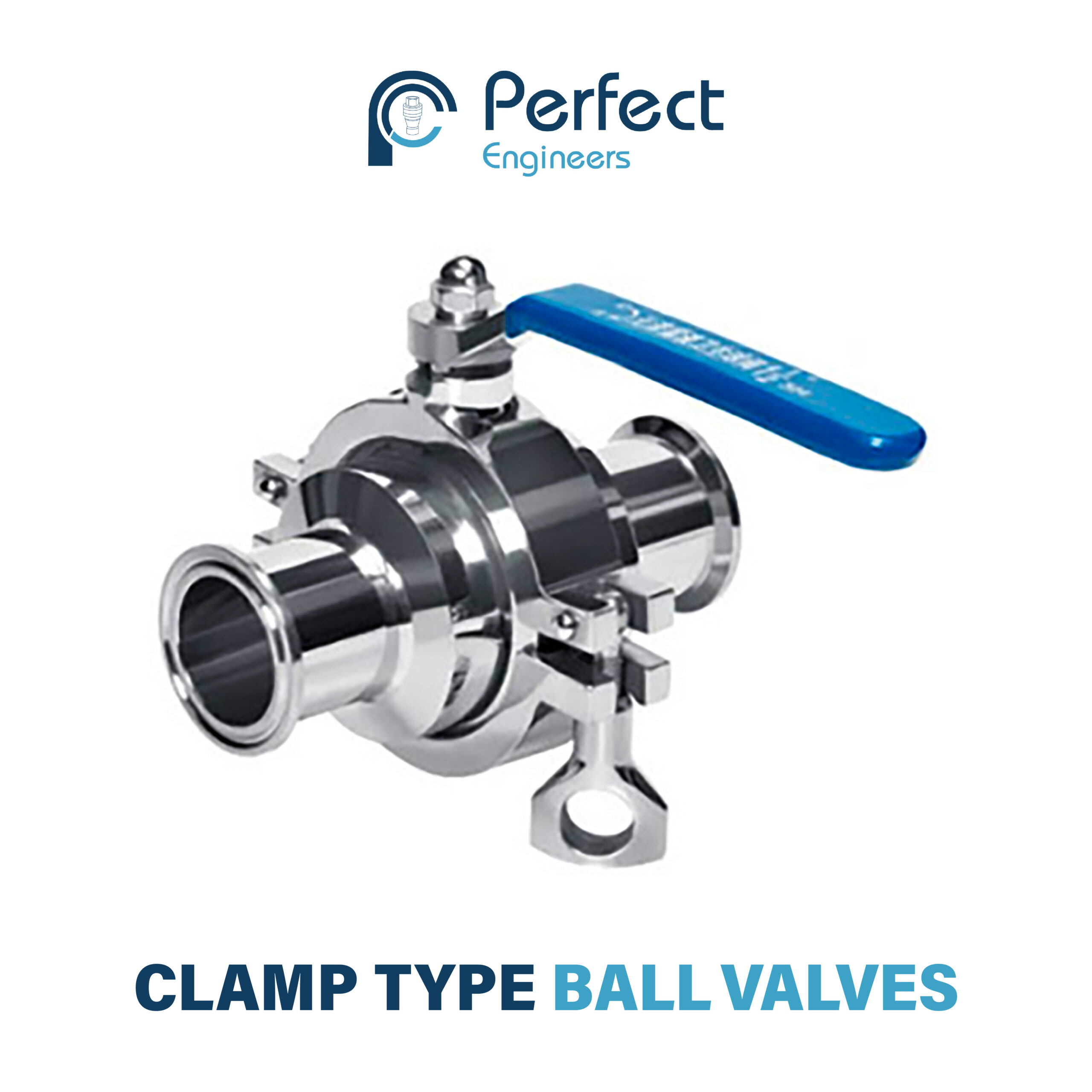

Clamp-Type-Ball-Valves-scaled

Clamp Type Ball Valves

With tool-free clamp connections, our valves allow fast installation and removal, making them ideal for systems requiring frequent sterilization or cleaning in place (CIP/SIP).

Technical Specifications

Parameter Specification
Tube Size Range 1/4” to 1” / 6mm to 25mm
Body Materials SS316, SS304, Brass, Monel, Alloy 20
Seat Materials PTFE, PEEK, RPTFE
Pressure Rating Up to 6000 PSI (413 Bar)
Temp Range -20°C to +250°C
Configuration 2-Way / 3-Way / L-Port / T-Port
Compliance ISO 8434-1, DIN 2353, ASTM A276

Types of Compression Ball Valves We Offer

  • 2-Way Compression Ball Valve – Basic shut-off
  • 3-Way L-Port Valve – Flow diversion or mixing
  • Mini Ball Valves (for tight spaces) – Ultra-compact
  • High-Pressure Compression Valve – Rated up to 6000 PSI
  • Needle/ Ball Combo Valves – For precision control + shut-off
  • Panel-Mounted Compression Valves – For instrumentation racks

Contact Us for Pricing & OEM Support

Call

+91-9004860491

Website

www.perfectqrc.com

Applications of Compression-End Ball Valves

  1. Gas sampling and analyzer systems
  2. Lab-scale chemical processing
  3. Instrumentation panels and impulse lines
  4. Skid-mounted chemical dosing units
  5. High-purity water and air systems
  6. Food and beverage quality testing setups
  7. Hydrogen, nitrogen, and inert gas lines
  8. Semiconductor and pharma cleanroom utilities

Installation & Maintenance Tips

  • Ensure tube end is clean, burr-free, and properly chamfered
  • Use appropriate ferrule alignment tools for perfect sealing
  • Avoid overtightening; follow manufacturer torque specs
  • For stainless steel tubing, use pre-swaging tools to ensure proper grip
  • Test for leaks using nitrogen or helium in sensitive systems

FAQs

Yes—our fittings are dimensionally compatible with industry-standard double ferrule systems.

Yes—with SS316 construction and PEEK seats, they can handle gas services up to 6000 PSI.

Yes—electropolished and degreased versions are available on request for high-purity or pharma environments.

For small-bore valves, manual operation is standard. However, panel-actuated or compact automation options are available.

Ready to Connect Faster, Safer, Smarter?

Explore Configurations, Compare Materials, and Get Prices Fast
We serve purchase heads, OEMs, and end-users with tailored Compression Fitting Ball Valves – Leak-Proof Flow Control for Instrumentation & Small-Bore Tubing Systems recommendations and commercial pricing.
